RHTEC Portable Metal Laser Marking Machine

Short Description:

Portable fiber laser marking machine widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.


  • Power: 20W-50W
  • Marking Area: 110*110mm

Product Detail

Parameters

RH-PF Portable Laser Marking Machine is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily making on the surface of big volume and heavy objects.

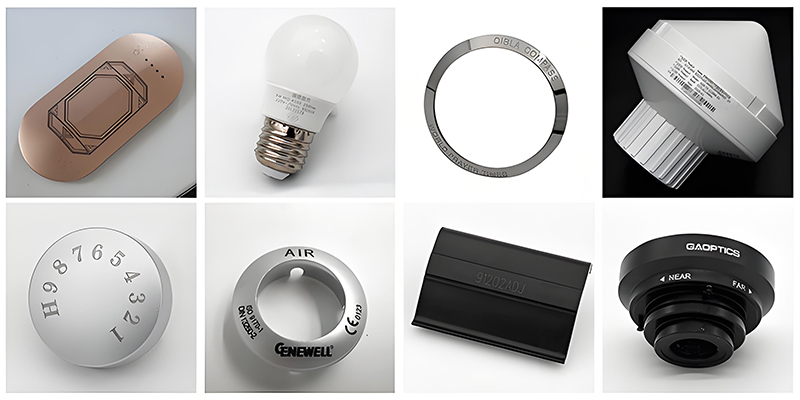

Fiber Laser 4.jpg

RH-PF series portable laser marker adopts advanced digital high speed scan galvanometer and module design, that can separate laser generator and lifter.

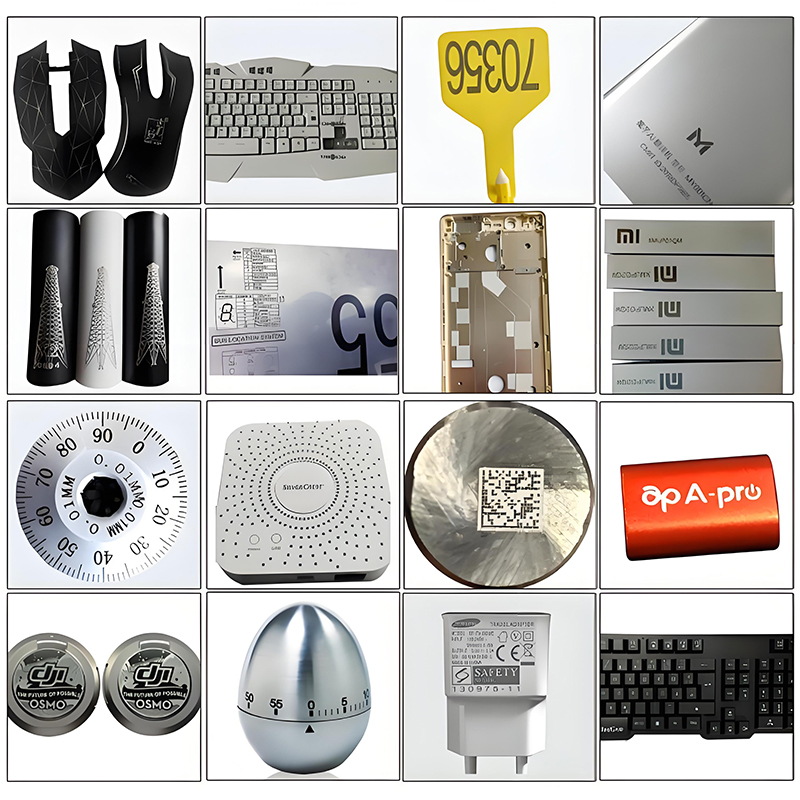

This kind of machines can satisfy marking applications like metal laser marking, plastic laser marking in the fields of food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen & bathroom hardwares, shells of watches, medical apparatus and instruments, tools fittings, electronics and other industries, auto spare parts and other industries.

RH-PF series portable laser marker has the advantages of low materials consumption, non-toxic, and pollution-free.


Model

RH-PF-M

Work Area (mm)

110*110mm

Laser Power

20W

Laser Repetition Frequency

10 200KHz

Wavelength

1065±10nm

Beam Quality M2

<2

Min Line Width

0.01mm

Min Character

0.15mm

Marking Speed

12000mm/s

Marking Depth

0.5mm

Repeat Precision

±0.003mm

Gross Power

<600W

Laser Module Life

More than 100000h

Cooling Style

Air Cooling

System Composition

Control System, Laser Module, Working Table

Working Environment

Clean and Dust Free

Operating Temperature

10℃-35℃

Humidity

5% to 75% (Free of Condensed Water)

Power

AC110V/220V, 50/60HZ, 10Amp Stable Voltage

Warranty

24 Months
